No pretreatment & maintenance free Excellent electrochemical performance Small lot-to-lot difference Various materials & sizes
No pretreatment & maintenance free Excellent electrochemical performance Small lot-to-lot difference Various materials & sizesThe traditional need-to-be-polished electrode want a time-consuming polishing process, or even a complex pretreatment process.Screen printed and Interdigitated electrodes provide you with a "Ready to be Used" solution to effectively save your experiment time.
Zensor's screen printed electrodes are manufactured by our exquisite production technolog ,which batch difference is less than 5% and can be used continuously for more than 24h *. The most important thing is that the electrochemical performance is equally excellent, providing you with the disposable and lab-analysis-level sensor.
* In a specific solution and experimental environment.
The images above are CVs of GC,SPE, Interdigitated electrodes in 3mM Ferricyanide with 0.1 M KCl,pH=7
Screen printed electrodes just require a few microliters to complete the test. SPE are a perfect solution for electrochemical tests on precious and expensive samples

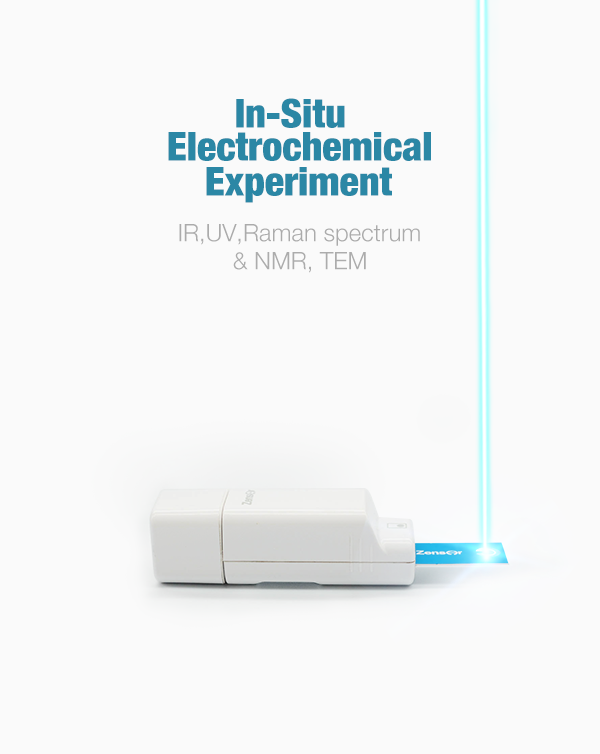

SPE can be used in conjunction with IR,UV,Raman spectrum, NMR, TEM, microscopy and other detection equipments
and other detection equipments

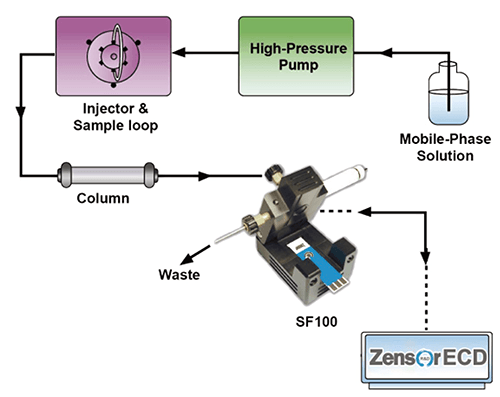

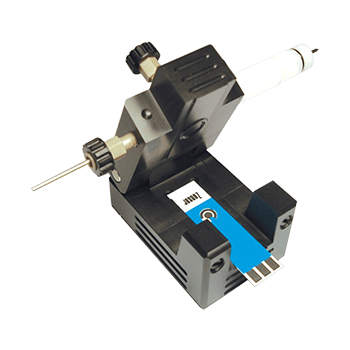

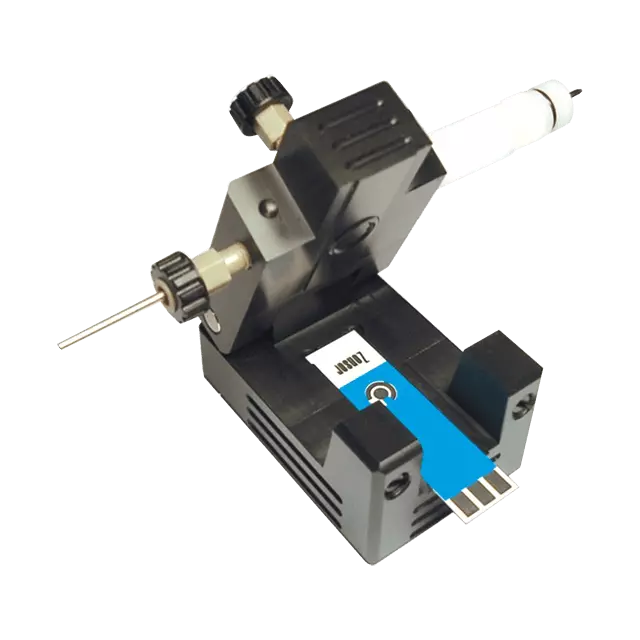

Image:SPE / EFC combined with HPLC apply in Real-time testing

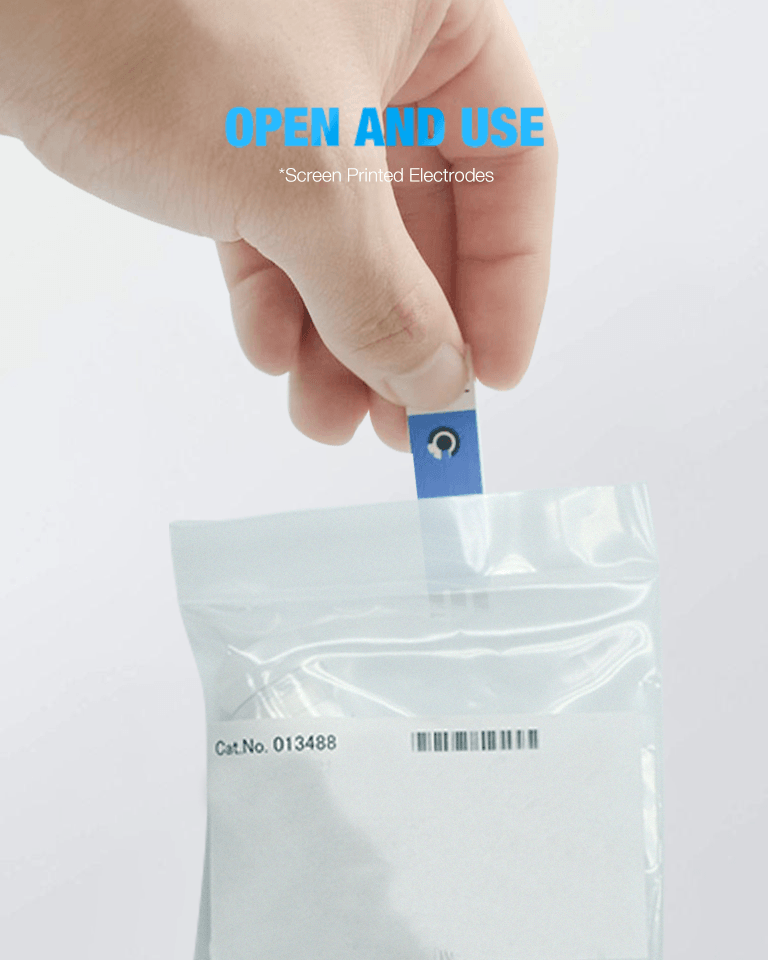

Screen printed electrodes are designed to be disposable, so you do not have to worry about electrode pretreatment and maintenance procedures.You can used SPE as you like and don't worry about electrode broken.In addition, in the same experimental environment, multiple electrodes can be modified and tested at the same time.That can complete repeatability tests within a short time ,and get more reliable data

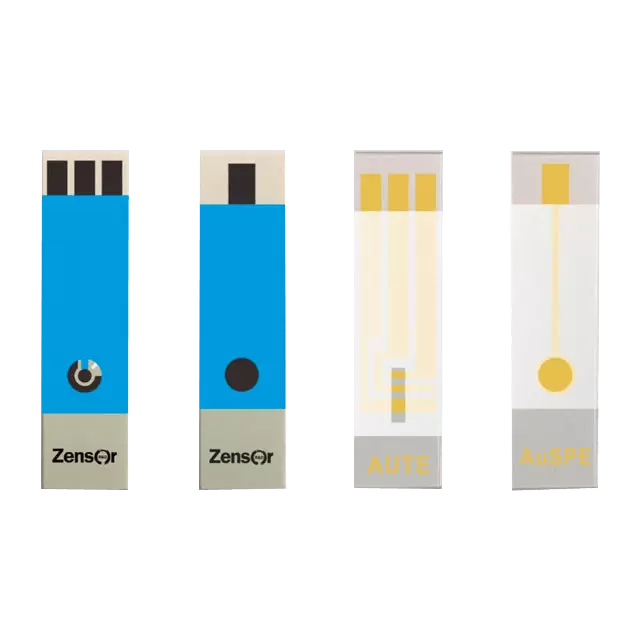

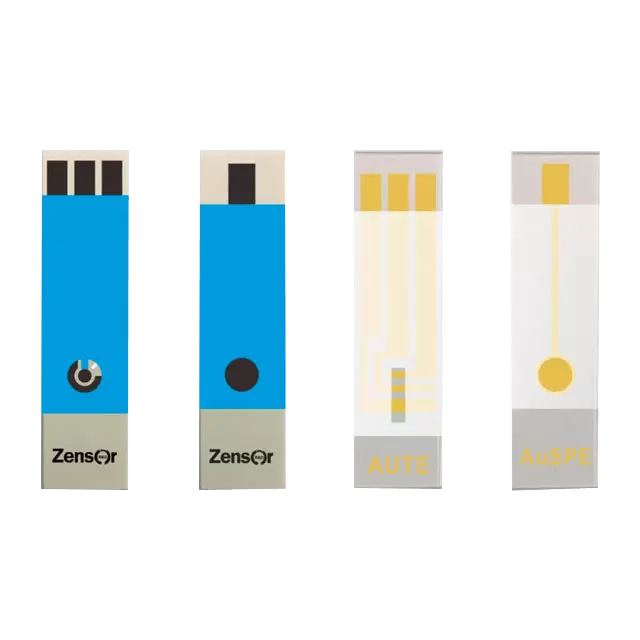

Screen printed electrodes/ SPE

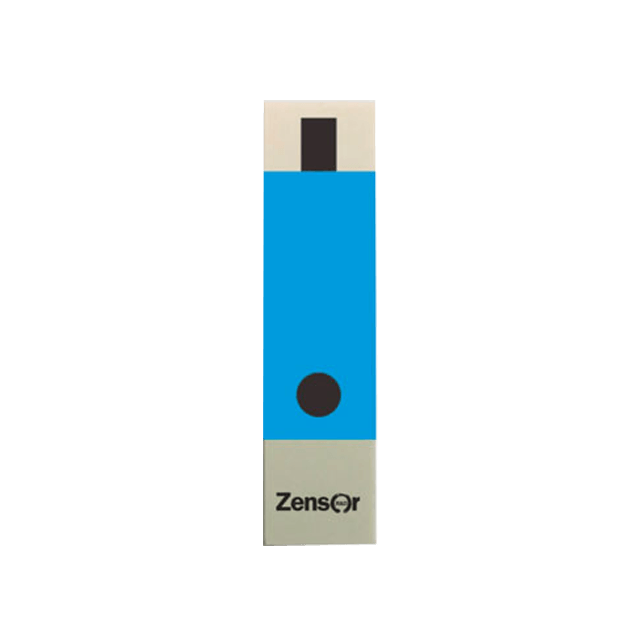

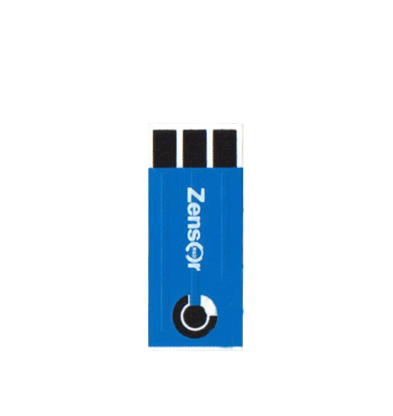

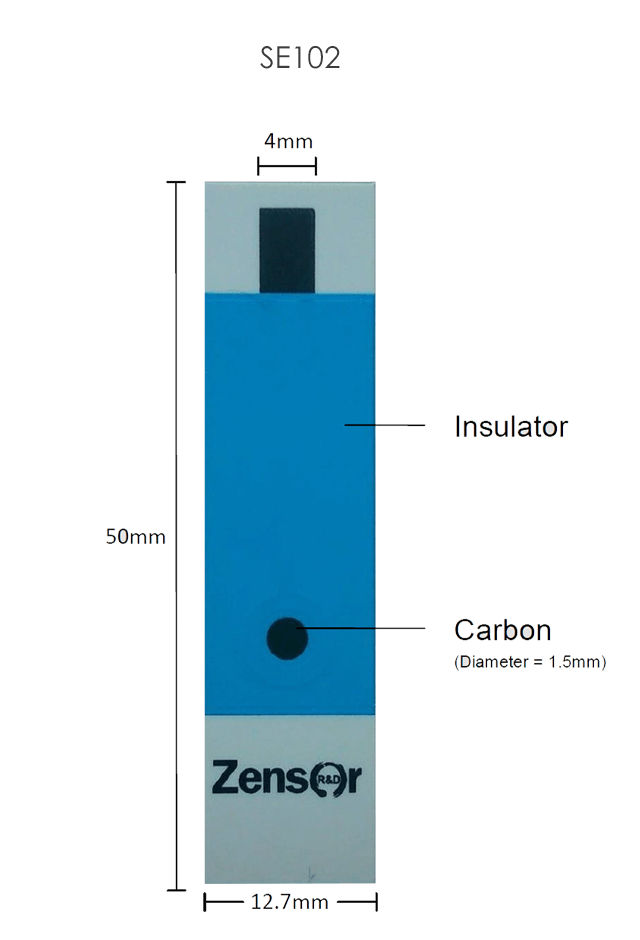

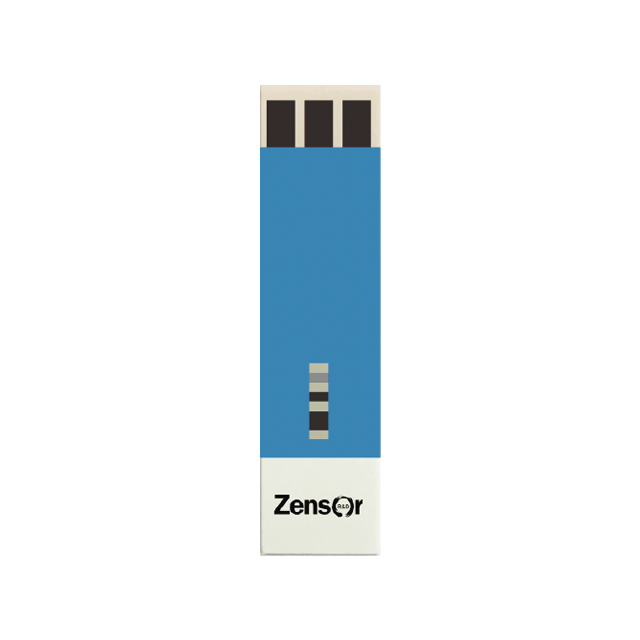

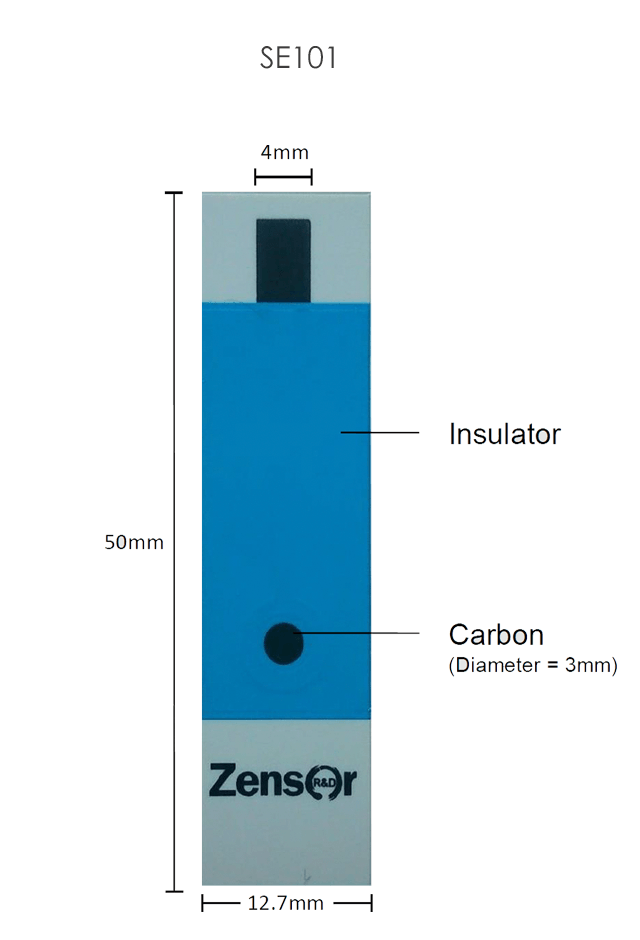

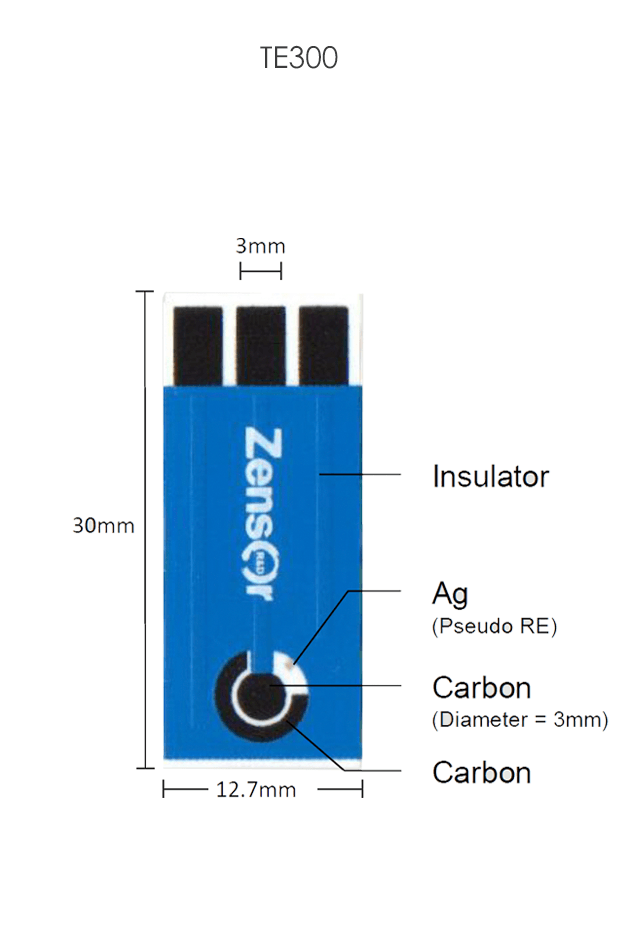

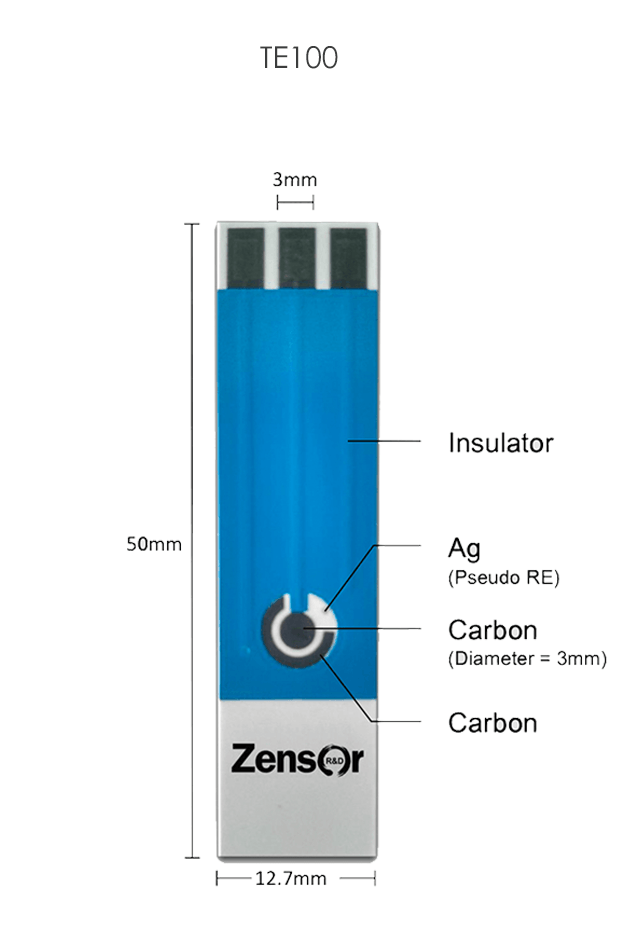

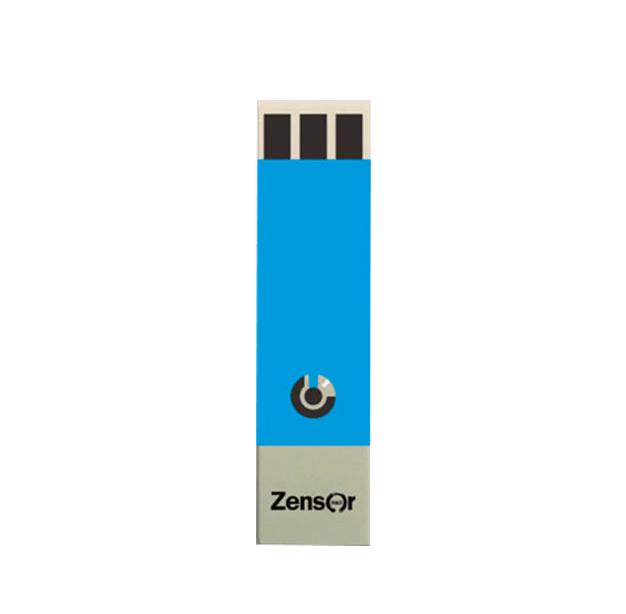

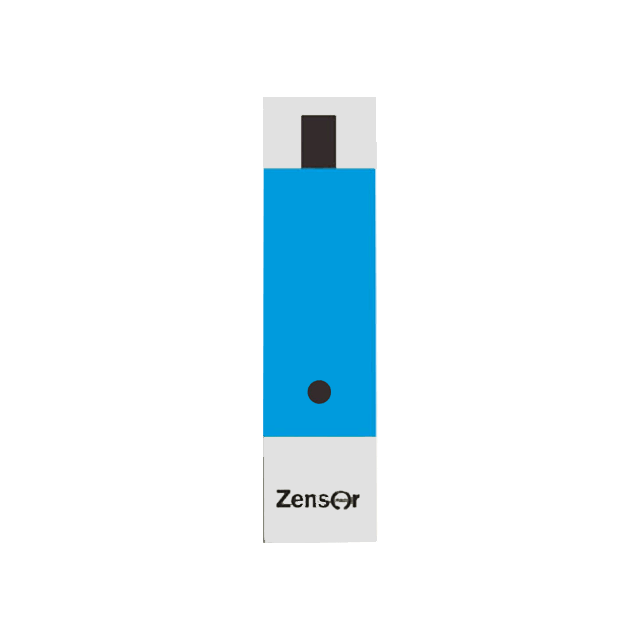

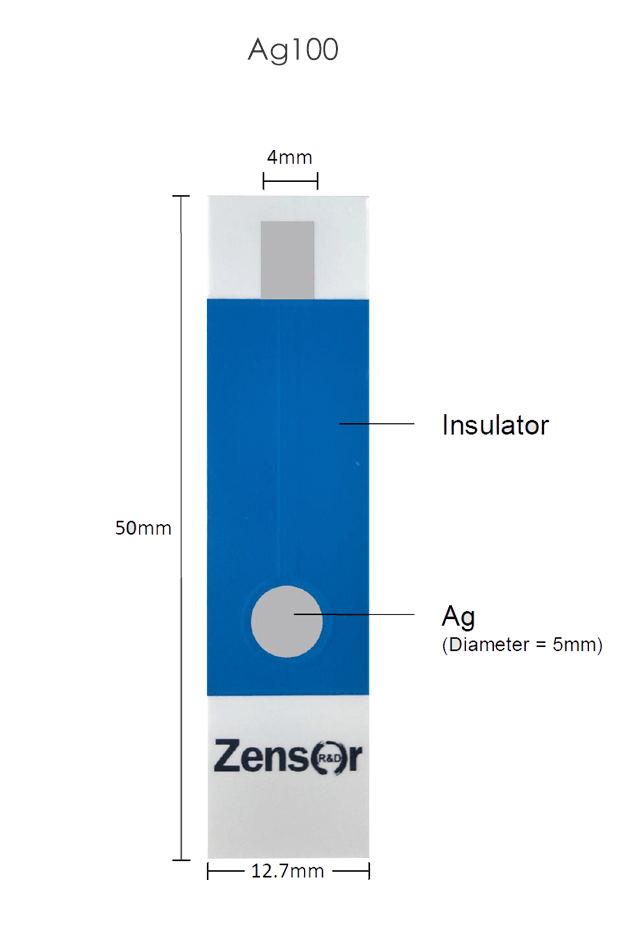

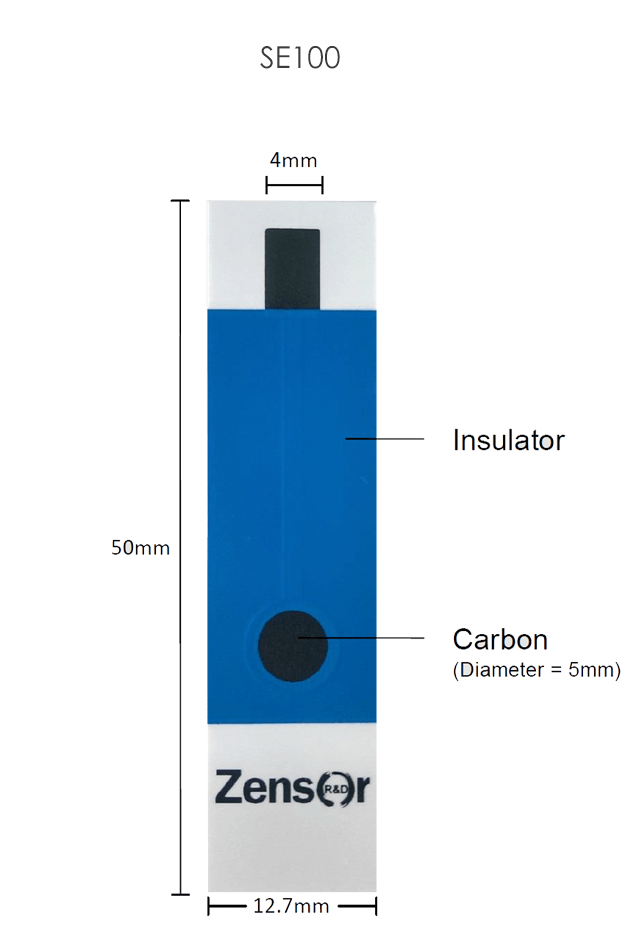

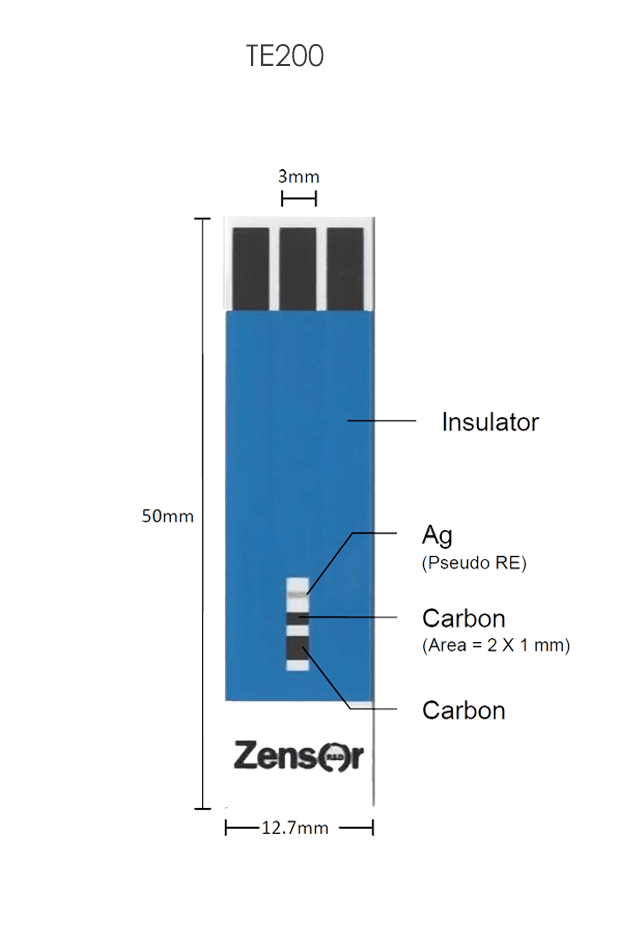

| Modal | TE100 | TE200 | TE300 | SE100 | SE101 | SE102 | Ag100 |
|---|---|---|---|---|---|---|---|
| Electrode system | 3 electrodes | 3 electrodes | 3 electrodes | 3 electrode | 3 electrode | 3 electrode | 3 electrode |
| Base plate | PP | PP | PP | PP | PP | PP | PP |
| Size of base plate（cm*cm） | 1.2*5 | 1.2*5 | 1.27*3 | 1.2*5 | 1.2*5 | 1.2*5 | 1.2*5 |
| Material of WE | carbon | carbon | carbon | carbon | carbon | carbon | Ag |
| Material of WE | D=3mm | 2*1mm | D=3mm | D=5mm | D=3mm | D=1.5mm | D=5mm |
| Area of WE(cm2) | 0.071 | 0.02 | 0.071 | 0.196 | 0.071 | 0.018 | 0.196 |
| Material of RE | Pseudo Ag | Pseudo Ag | Pseudo Ag | - | - | - | - |
| Area of RE(cm2) | 0.01 | 0.02 | 0.01 | - | - | - | - |
| Material of CE | carbon | carbon | carbon | - | - | - | - |
| Area of CE(cm2) | 0.05 | 0.04 | 0.05 | - | - | - | - |
Interdigitated electrodes

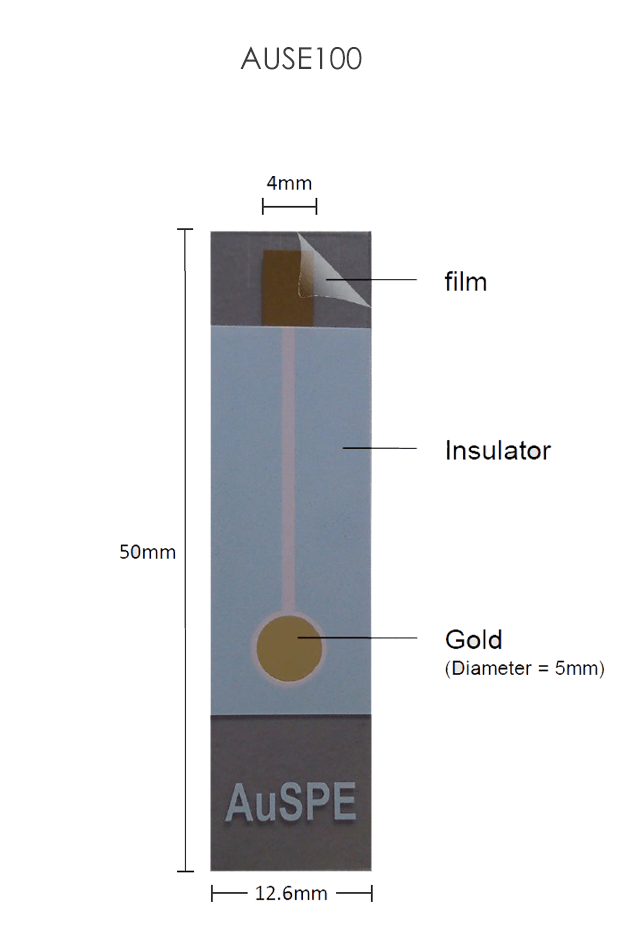

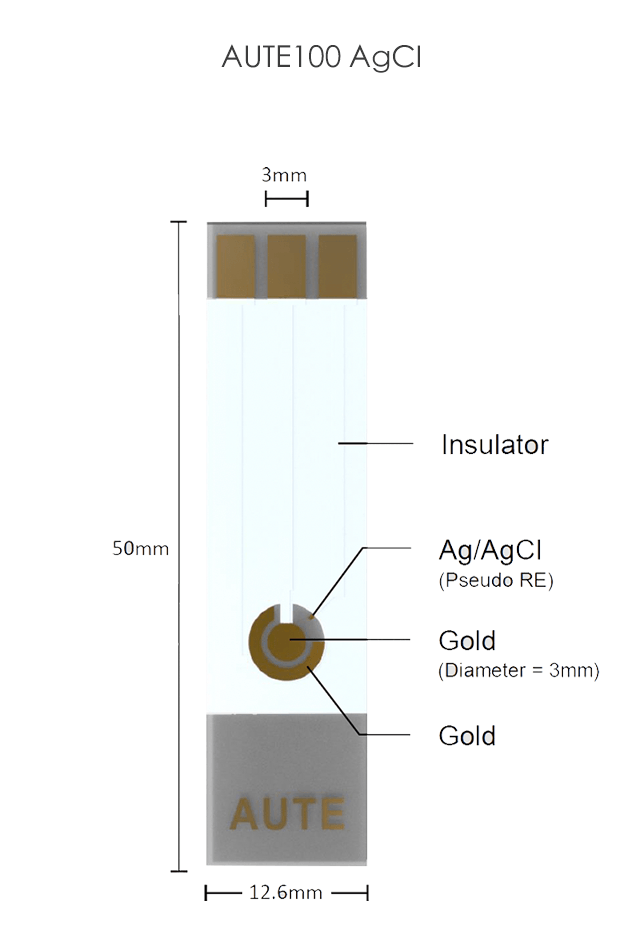

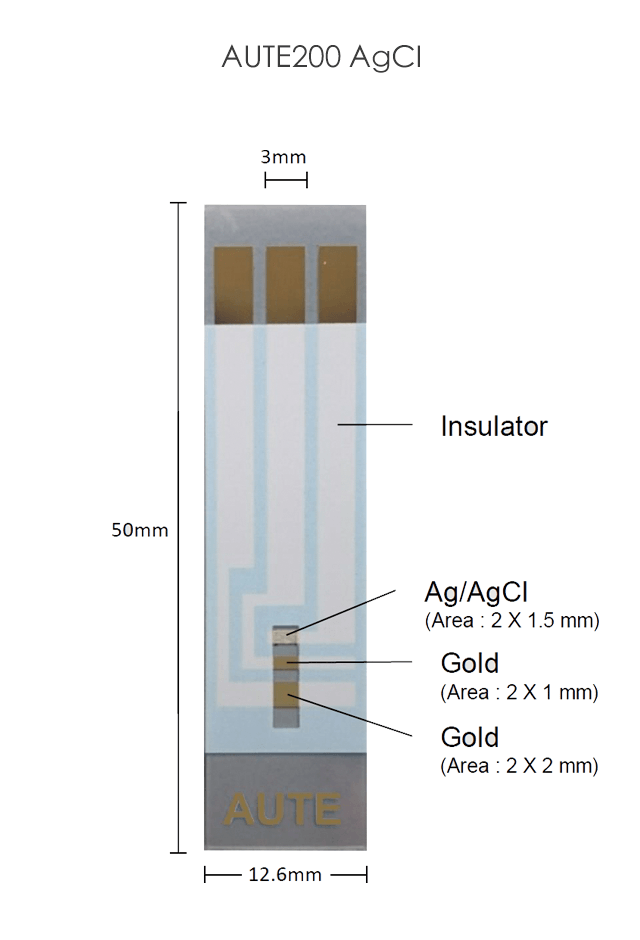

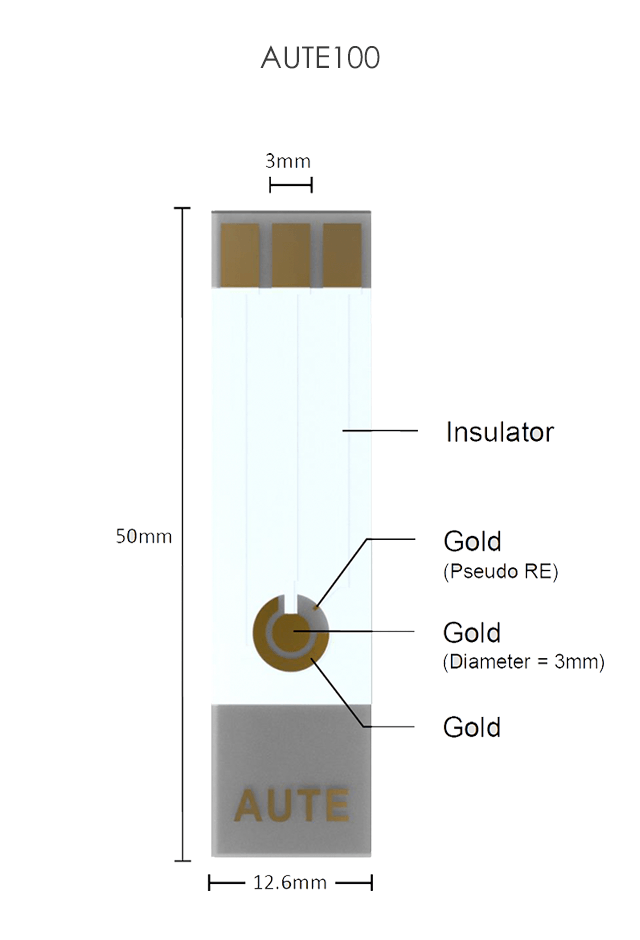

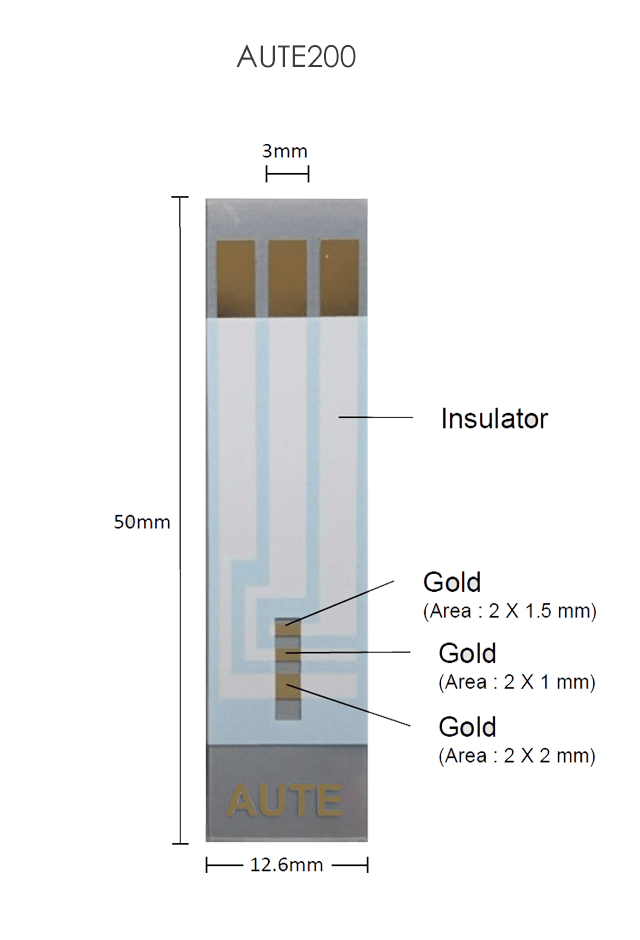

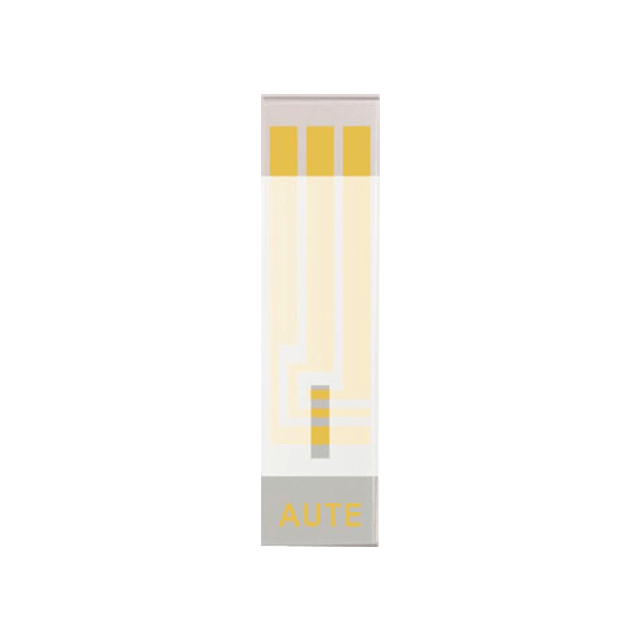

| Modal | AUSE100 | AUTE100 | AUTE100AgCI | AUTE200 | AUTE200AgCI |
|---|---|---|---|---|---|
| Electrode system | single electrode | 3 electrodes | 3 electrodes | 3 electrodes | 3 electrodes |
| Base plate | PC | PC | PC | PC | PC |
| Size of base plate（cm*cm） | 1.2*5 | 1.2*5 | 1.2*5 | 1.2*5 | 1.2*5 |
| Material of WE | Au | Au | Au | Au | Au |
| Size of WE | D=5mm | D=3mm | D=3mm | 2*1mm | 2*1mm |
| Area of WE(cm2) | 0.196 | 0.071 | 0.071 | 0.02 | 0.02 |
| Material of RE | - | Au | AgCI | Au | AgCI |
| Area of RE(cm2) | - | 0.01 | 0.01 | 0.02 | 0.02 |
| Material of CE | - | Au | Au | Au | Au |
| Area of CE(cm2) | - | 0.05 | 0.05 | 0.04 | 0.04 |
In order to meet your special research needs, we can also adjust the design, material and specification of the electrode. let your imagination take you everywhere
With our advanced technology and rich experience of product development , we provide you with professional OEM, ODM services
